1302BA BendPak Automatic Pipe Bender Package

BendPak Automatic Pipe Bender 1302BA With Metric Tooling Package - 208-230V / 60Hz / 1 Phase

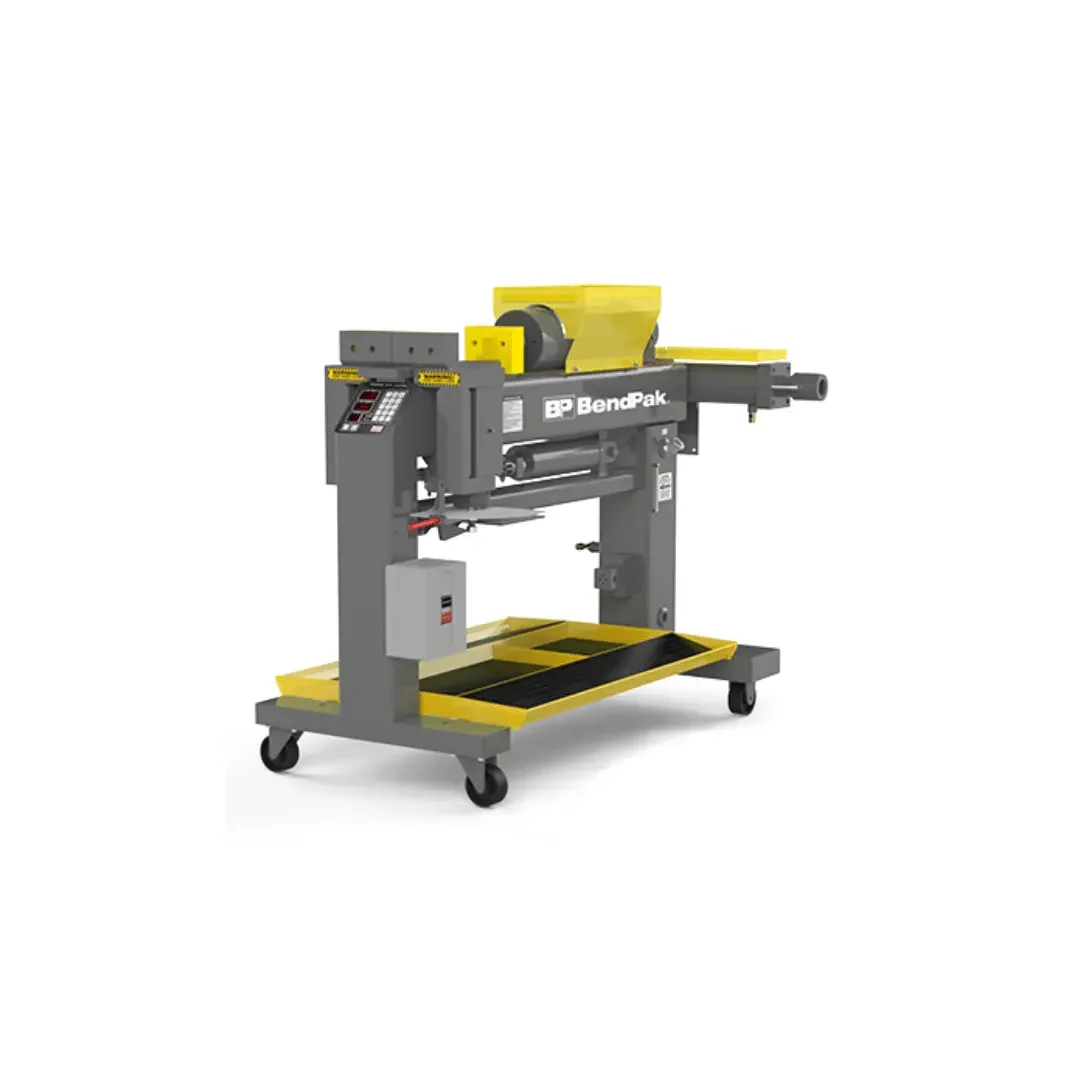

The BendPak 1302BA digital automatic pipe bender package brings precision, versatility, and power to fabrication shops that demand repeatable performance and full control over complex bending tasks. With this machine, operators gain the ability to program exact bend angles and save presets, making it ideal for jobs requiring consistency across multiple parts. The digital control system lets technicians enter desired values, monitor live die angle feedback, and toggle between automatic or manual bending modes. This flexibility ensures both high volume production and custom one-off jobs can be handled effectively.

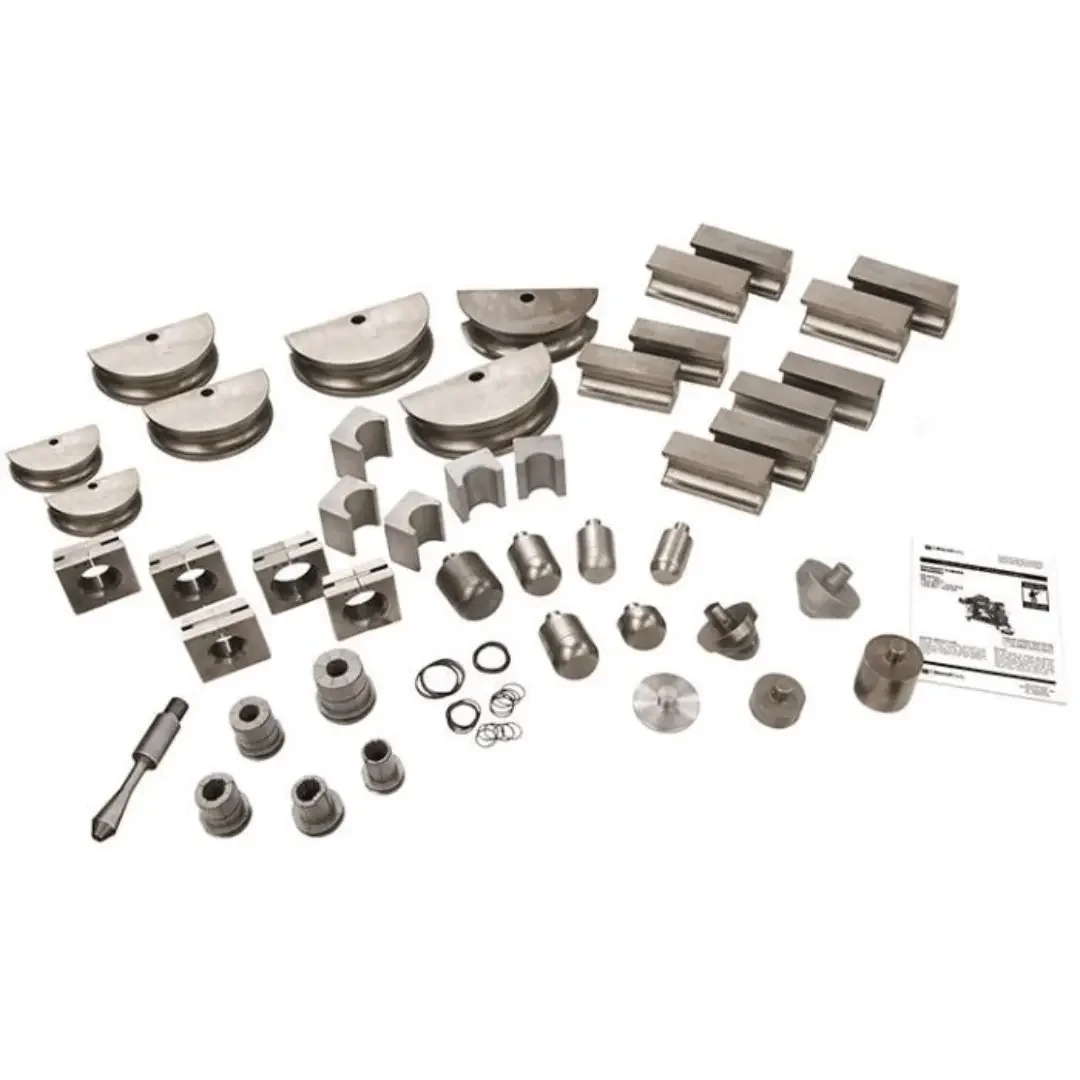

The Bendpak pipe bender package includes the automatic bender itself along with a set of tooling compatible with standard 302 die sizes. The standard tooling enables bending of common exhaust and tubing applications without needing immediate upgrades. The BendPak 1302BA’s frame is constructed from rigid 6-inch by 6-inch by 3⁄8-inch welded steel tubing, engineered for torsional strength and long service. Hydraulics drive the bending and finishing operations using commercial-grade cylinders, all featuring chrome-moly shafts built to ANSI 92.2 standards. The bending heads and tooling mounts undergo precise grinding, held to within .002 inches of tolerance, reducing runout and ensuring accurate bends across repeated cycles.

Tube capacity for the 1302BA Bendpak pipe bender package reaches up to 3 inches in diameter with wall thickness up to .095 inch, making it suitable for heavy exhaust tubing, structural tubing, and a variety of workshop jobs. The machine achieves its bending using a top cylinder that produces up to 60,000 pounds of force, ensuring that even tougher tubing resists yield or kinking during bends. The bending radius range spans from a minimum of approximately 3.3 inches to a maximum of 5 inches, giving a balance between tight bends and smooth curvature. To support end-finishing operations, the package includes two rear end-finishing units for flaring and expanding tubing ends without needing separate machines.

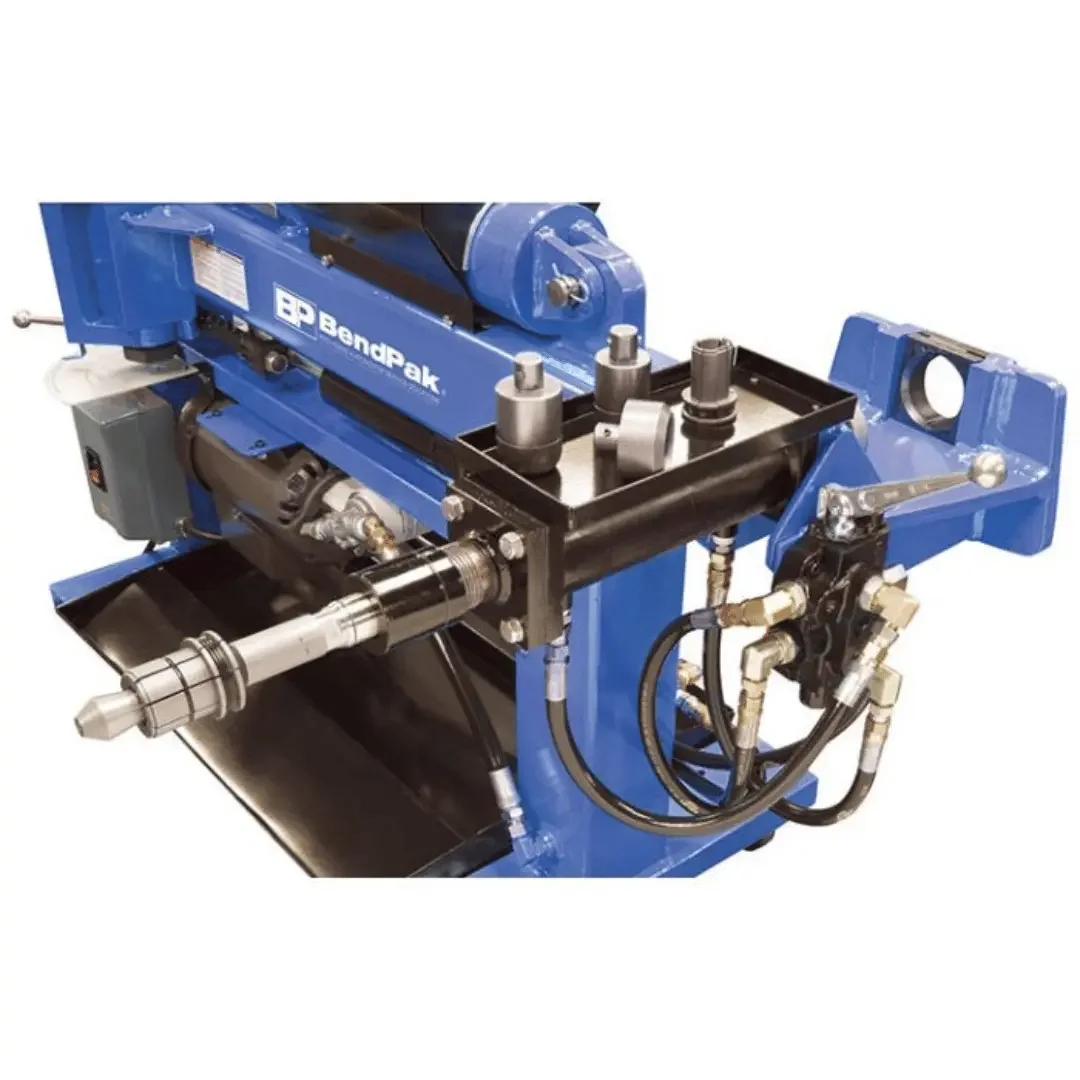

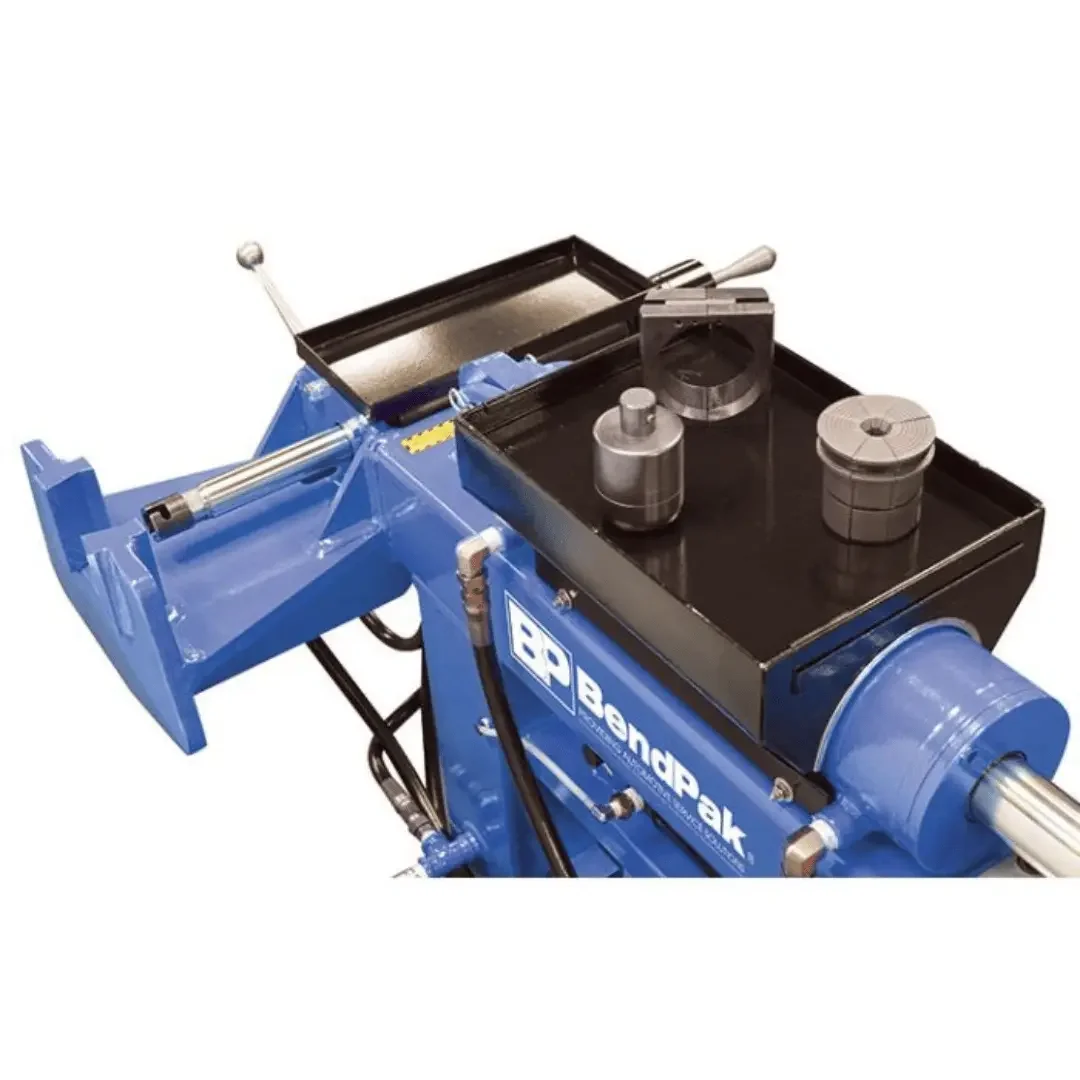

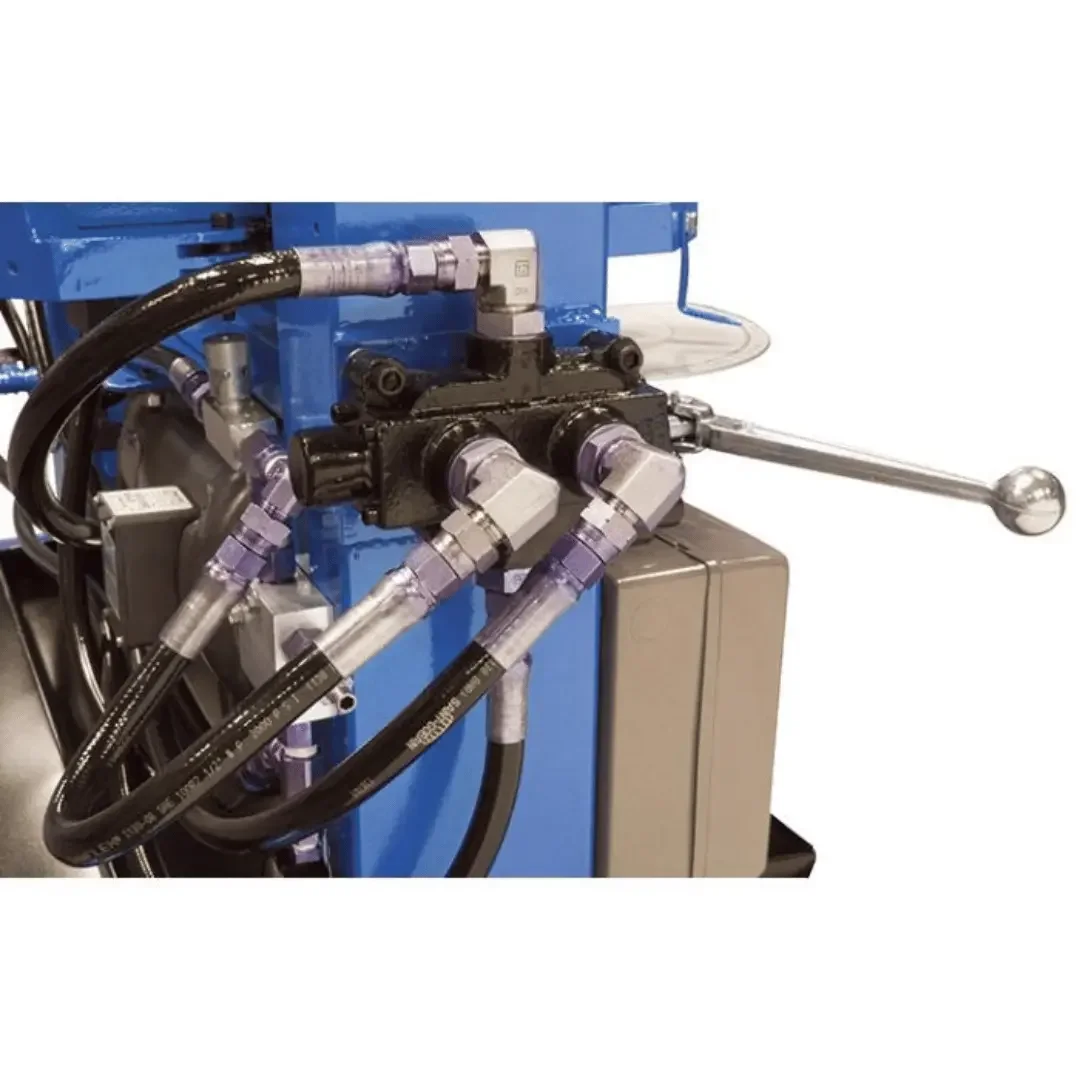

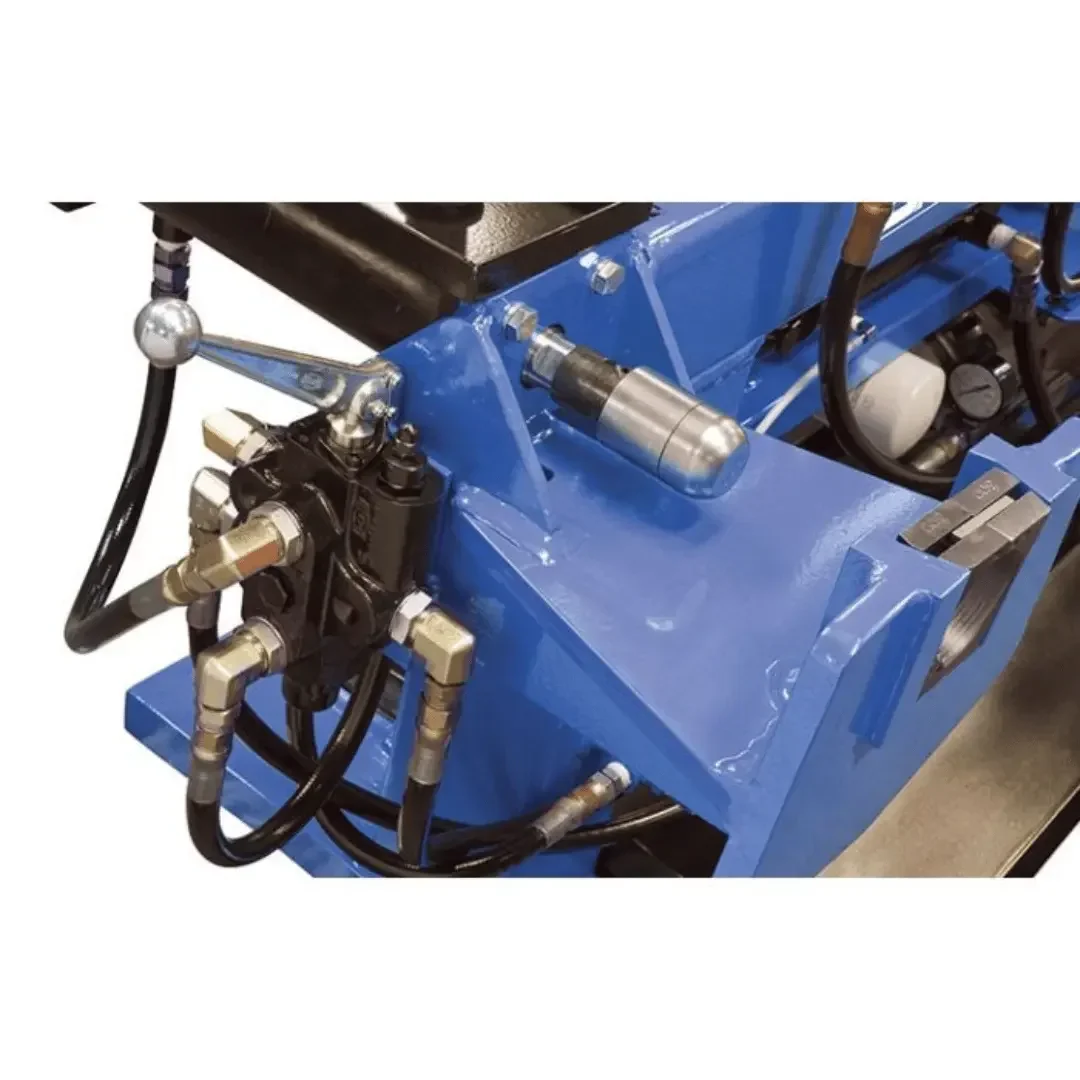

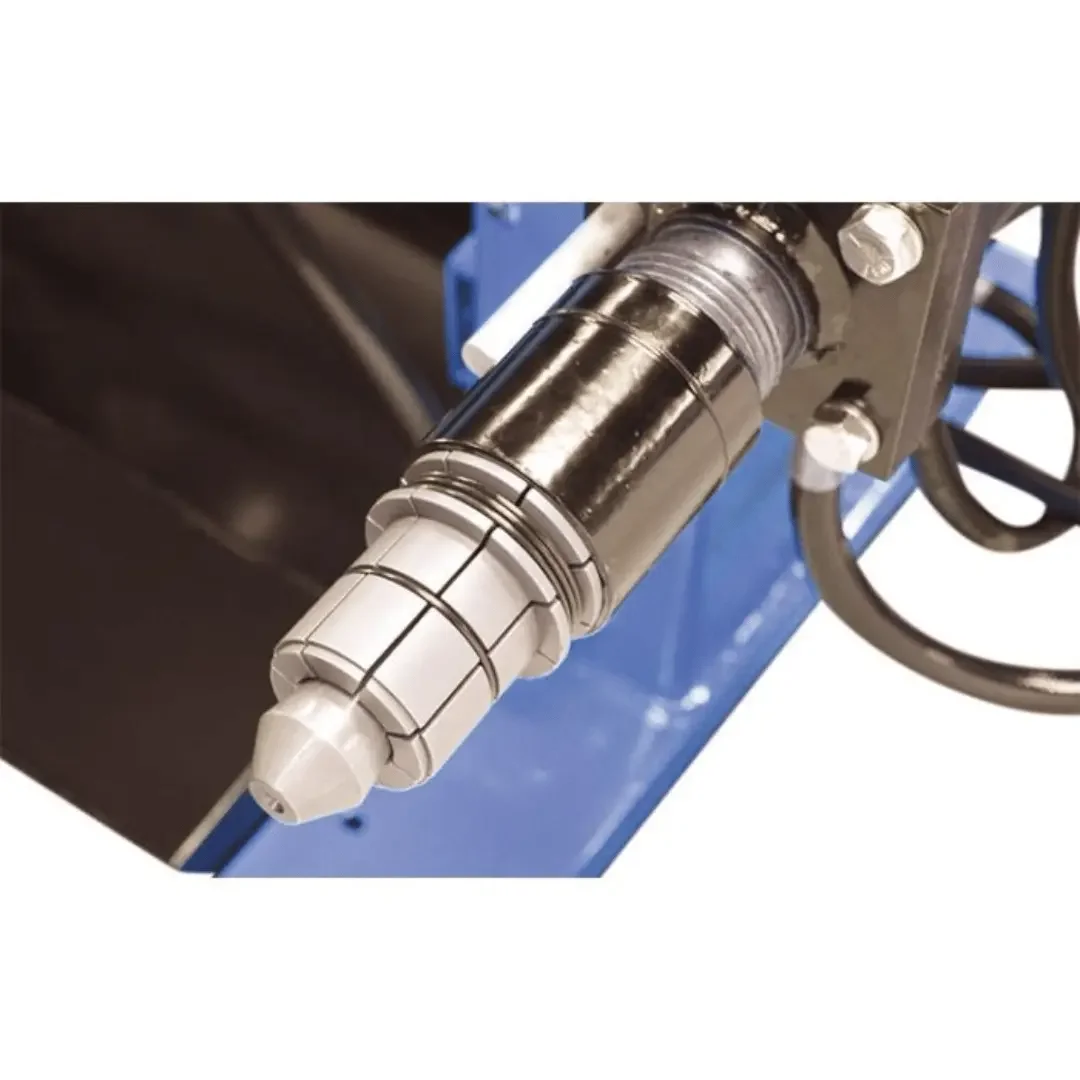

Quick change tooling is a key feature of the 1302BA. Twist-lock tooling and quick-release dies allow faster die swaps and shorter setup times. A clampless swager and internal expander are also integrated, enabling internal diameter expansion or outside flaring operations using the same machine. The drop-in collar design simplifies swaging operations, letting the shop swiftly move from bending to finishing modes without disassembling tooling. The hydraulic system is protected by an integrated power-relief control valve that prevents overpressure, and the system also features pressure gauges for real-time monitoring of hydraulic pressures during bending cycles.

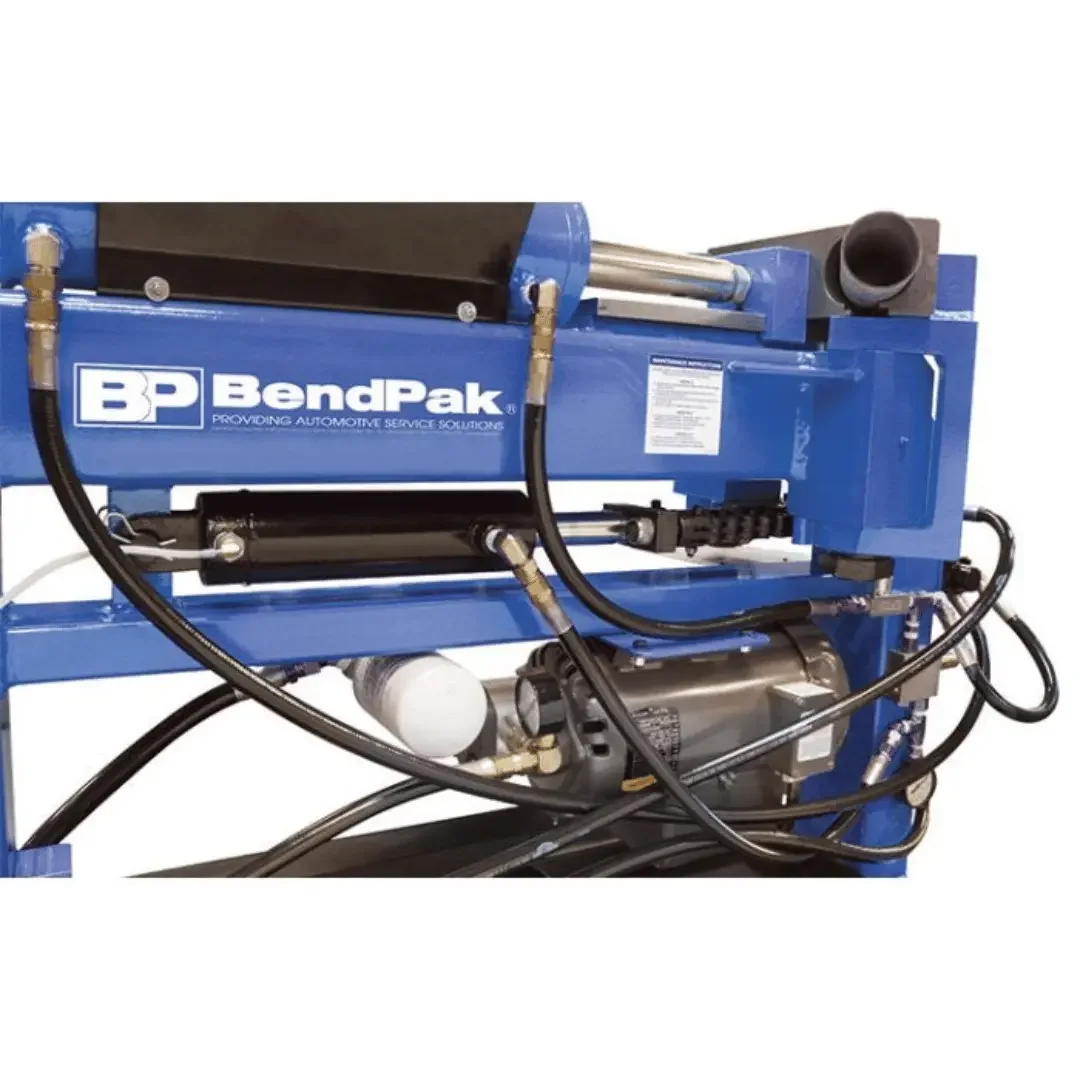

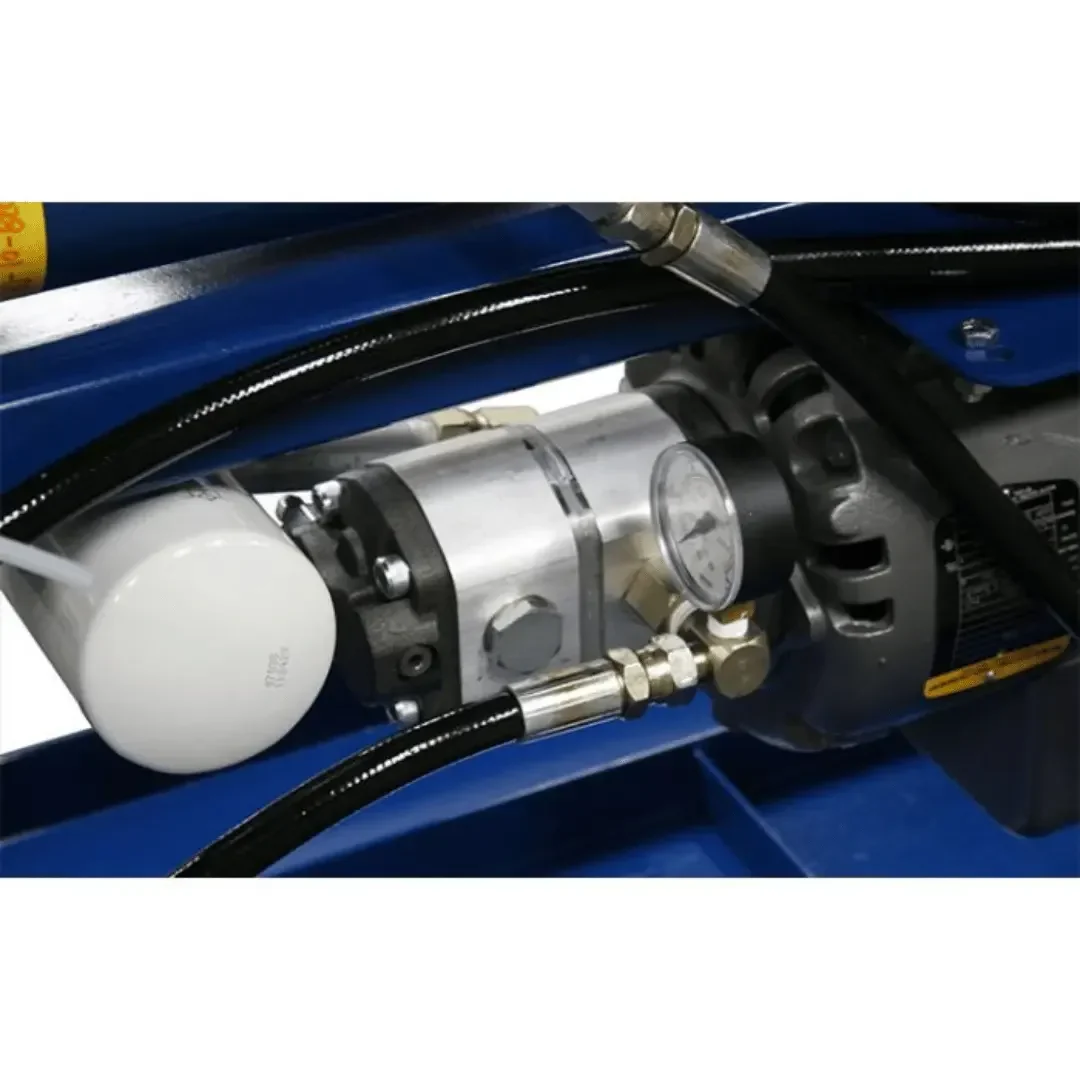

Dimensions of the Bendpak unit are roughly forty-one inches wide by sixty-four inches deep by twenty-six inches tall, with a shipping weight of around 1,388 lbs. The machine may ship crated at about 48 × 70 × 30 inches in size. Because of its mass, handling equipment such as a forklift is necessary for installation. The hydraulic system includes a large oil reservoir, canister oil filter, and oversight of clean fluid flow to mitigate contamination and maintain consistent performance. Oversized hoses and an oil sight gauge help with maintenance and system diagnostics during extended use.
