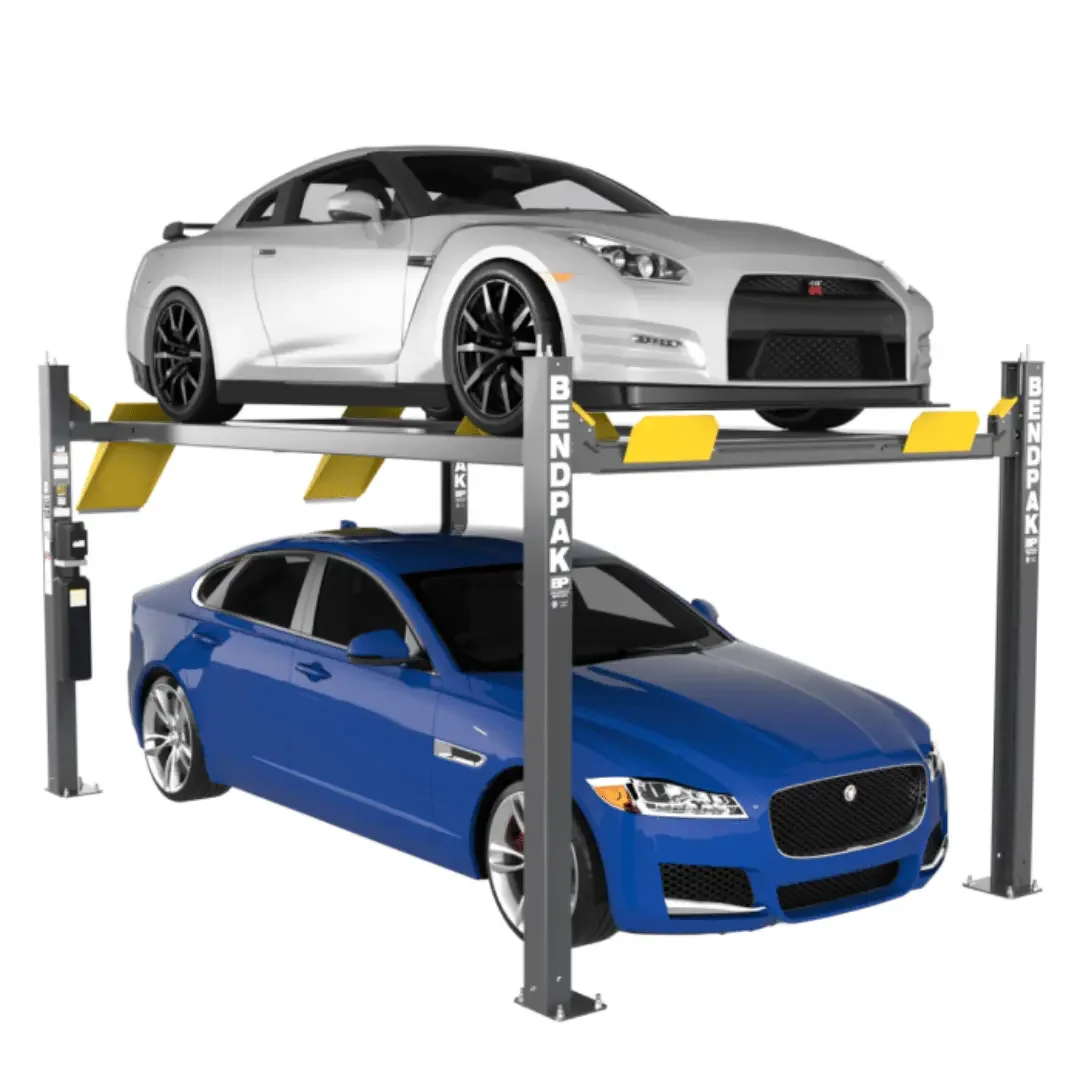

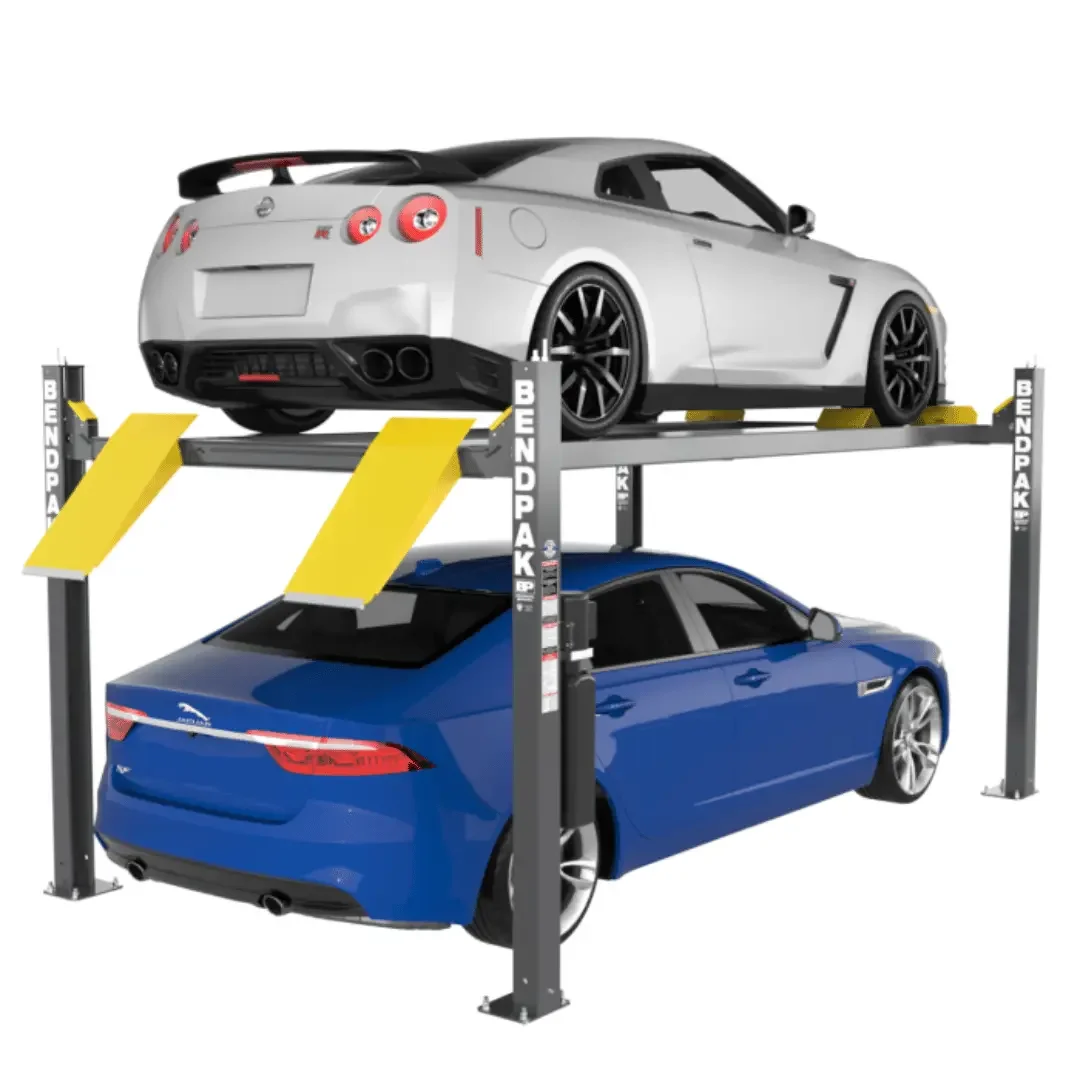

BendPak HD-9EWT 4 Post Extra-Wide/High Vehicle Lift
BendPak’s HD-9EWT 4 post lift is the perfect solution for all your storage needs. This extra-tall and extra-wide lift offers ample overhead clearance and enough side room to easily pa
The BendPak HD-9EWT 9,000 lb Capacity 4 Post Lift is extra wide, extra high and is engineered to deliver exceptional performance, safety, and versatility for professional workshops and dedicated automotive enthusiasts. Designed to accommodate heavy-duty vehicles, oversized trucks, SUVs, and high-clearance vehicles, this lift combines robust engineering with innovative design to create a dependable tool for lifting, servicing, and storing vehicles with ease. With a lifting capacity of 9,000 pounds, a maximum rise of 82.165 inches, and a runway width of 117 inches, the HD-9EWT is a perfect solution for shops that require both strength and flexibility.
One of the defining features of the HD-9EWT 4 post lift is its extra-wide runway design, which allows for safe lifting of vehicles with extended widths without the risk of damage to mirrors, doors, or other vehicle components. The generous 107-inch distance between posts offers even greater convenience when working on large vehicles, giving technicians freedom of movement around the vehicle. This lift is ideal for shops working on everything from everyday passenger vehicles to high-clearance trucks and specialty off-road vehicles.
The HD-9EWT’s height capabilities also set it apart. With a post height of 100 inches and a maximum lifting height of 87 inches, it provides excellent clearance for undercarriage work, making it ideal for repairs, maintenance, and detailing. The removable approach ramps further add to its versatility, allowing technicians to work with low-clearance vehicles when longer optional ramps are installed. This adaptability makes the HD-9EWT a standout choice for shops with diverse lifting needs.
Contact us for more information on Bendpak car lifts.
Product Features
- 9,000-lb. maximum lifting capacity
- Freestanding design
- High-rise
- Better suited for wide cars and off-road vehicles
- Perfect for parking, storage, and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric-hydraulic power system
- Single hydraulic cylinder mounted underneath runway

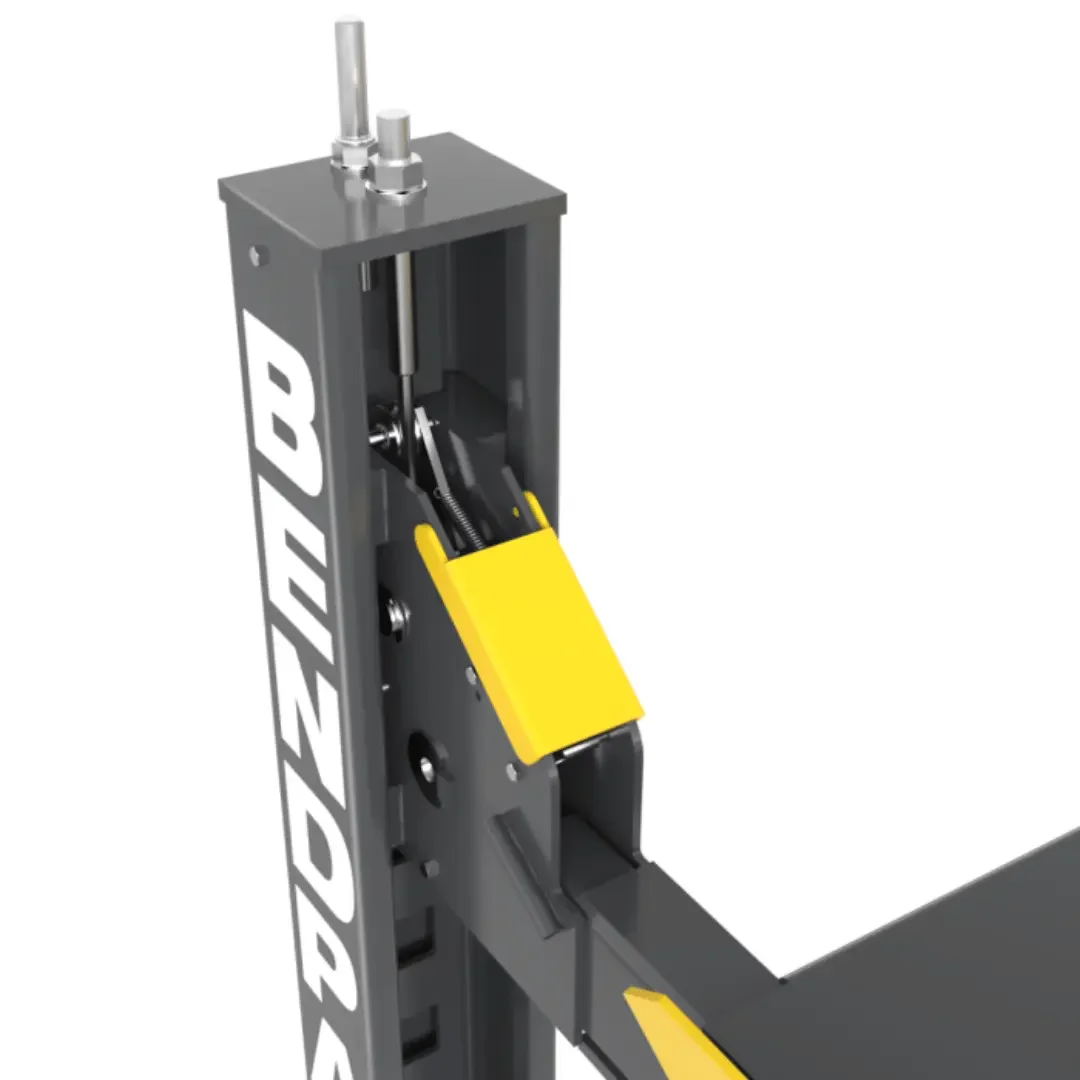

- Fully enclosed lifting cables, safety locks, and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Multi-position safety locks in each column
- Adjustable safety locks in each column
- Adjustable lock ladders
- Runways feature a durable matte finish
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles available
Product Specifications
Capacity
| Lifting Capacity: | 9,000 lbs |
| Max. Capacity / Front Axle: | 4,500 lbs |
| Max. Capacity / Rear Axle: | 4,500 lbs |
| A - Min. Runway Height | 4.75 in. / 121 mm |
| B - Max. Rise | 82.165 in. / 2,087 mm |
| C - Max. Lifting Height: | 87 in. / 2,208 mm |
| D - Overall Width ± .125 in. / 3 mm | 117 in. / 2,970 mm |
| E - Outside Length | 198 in. / 5,028 mm |
| F - Overall Length | 224.50 in. / 5,703 mm |
| G - Height of Post | 100 in. / 2,537 mm |
| H - Distance Between Posts | 107 in. / 2,716mm |
| I - Drive-thru Clearance | 93.25 in. / 2,371 mm |
| J - Runway Width | 19 in. / 482 mm |
| K - Runway Length | 182.25 in. / 4,629 mm |
| L - Width Between Runways | 35.75 in. – 42.0 in. / 910 MIN – 1,068 mm MAX |
| M - Runway Centerline | 57.75 in. – 64.00 in. / 1,468 – 1,626 mm |
| N - Outside Edge of Runways | 76.75 in.- 83 in. |
| Max. Load Operating Pressure | 135 in. / 3,429 mm |
| Min. Wheelbase @ Rated Capacity | 115 in. / 2,921 mm |
| Min. Wheelbase @ 75 Capacity | 95 in. / 2,413 mm |
| Min. Wheelbase @ 25 Capacity | 80 in. / 2,032 mm |
| Locking Positions | 17 spaced every 4 in. / 102 mm |
| Motor | 220 VAC, 60 Hz, 1 Ph (special voltages available upon request) |
