BendPak Parking Lift: PL-6KT 6,000 Lb. Capacity Triple Independent Platform Parking Lift

BendPak Parking Lift: PL-6KT 6,000 Lb. Capacity Triple Independent Platform Lift

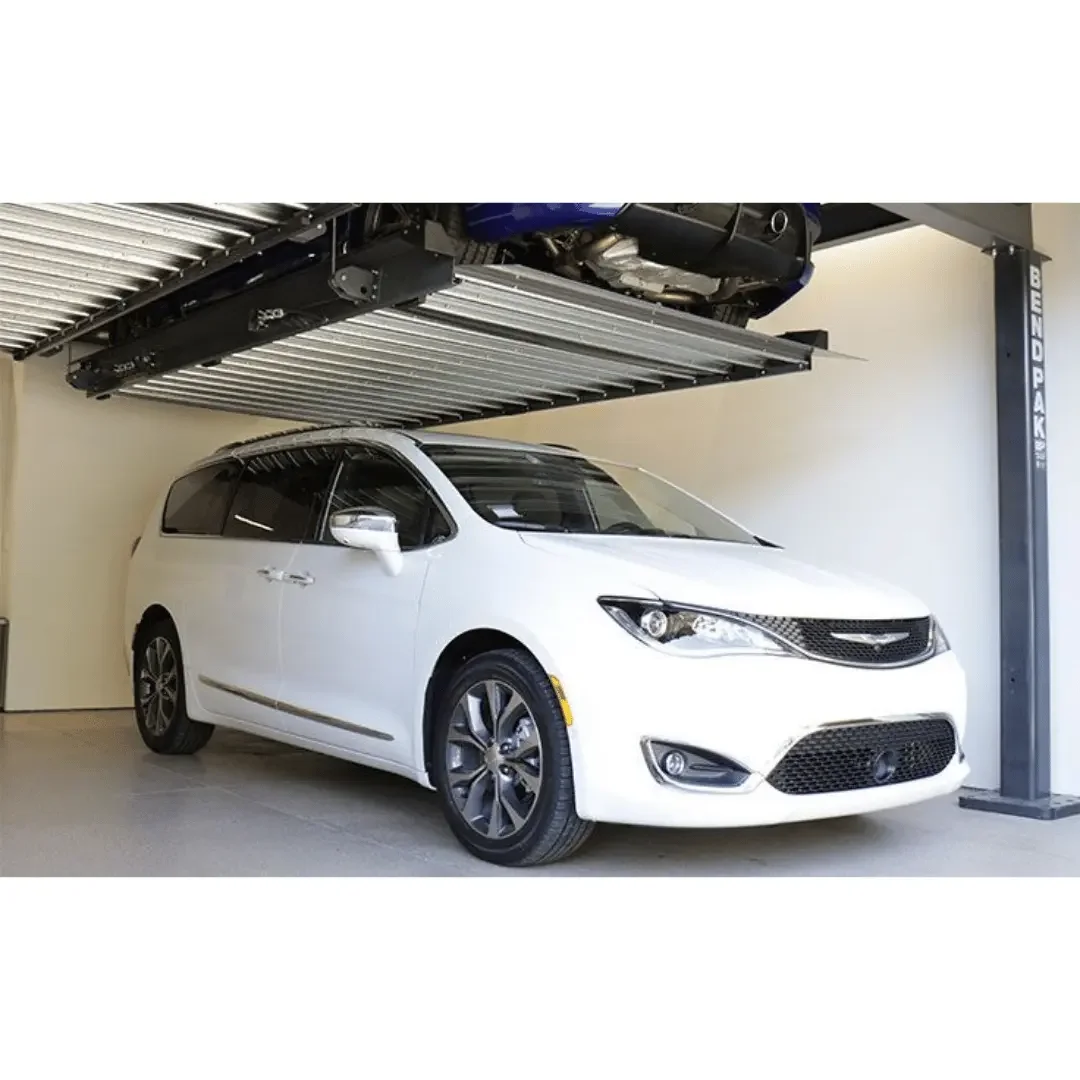

The BendPak PL-6KT is a triple-wide independent platform parking lift engineered to maximize garage capacity without compromising ease of use or structure aesthetics. Each of the three platforms is rated at 6,000 lb, giving a total rated capacity of 18,000 lb when all platforms are in use. Its design allows you to stack three vehicles over three vehicles, effectively converting a three-car footprint into a six-car parking deck.

Instead of having columns interrupting the lifting decks, the superstructure uses a streamlined four-column layout, leaving all three lifting decks free of obstructing posts. This means users can enter or exit vehicles on any platform without having to work around columns. The three platforms operate independently, so one vehicle can be raised or lowered without affecting the others — simplifying access to lower vehicles without having to move adjacent ones.

Hydraulic lines and lifting cables are internally routed inside the structure to reduce clutter and reduce risk of cable interference. The design ensures safe and synchronized operation of all decks. At maximum rise, all three platforms engage a single-position, auto-engaging lock system, so the platforms remain locked in position even in the unlikely event of hydraulic or cable failure. Each column also has multi-position safety locks for additional security.

The lift’s platforms are constructed from galvanized steel to resist corrosion, oil, and general wear. Wide baseplates and robust I-beam and C-channel structures enhance stability. Built-in wheel stops and front/rear tire chocks maintain vehicle positioning during use. Dual hydraulic cylinders and heavy duty steel lifting cables provide reliable motion, and oversized sheaves reduce cable fatigue over repeated use. The finish is powder coated for durability in shop environments.

In terms of dimensions, the overall width is around 308 in, the overall length is about 236.5 in, and the height is approximately 123.75 in. Minimum platform height (runway) is about 9 in, while the maximum rise of the lift is 89 in. The width between posts is around 283 in, platform width 82 in, and platform length 152 in. Drive clearance beneath is about 93 in. The system is designed to lift fully in about 30 seconds. The shipping weight is close to 8,889 lb.

Because of its efficient footprint and stacking capability, the PL-6KT is particularly suitable for large residential garages, commercial parking facilities, or shops seeking to expand vehicle storage without multiplying lift infrastructure. Its independent platform operation, robust structure, and thoughtful safety features make it a high-capacity solution for demanding parking or storage needs.
