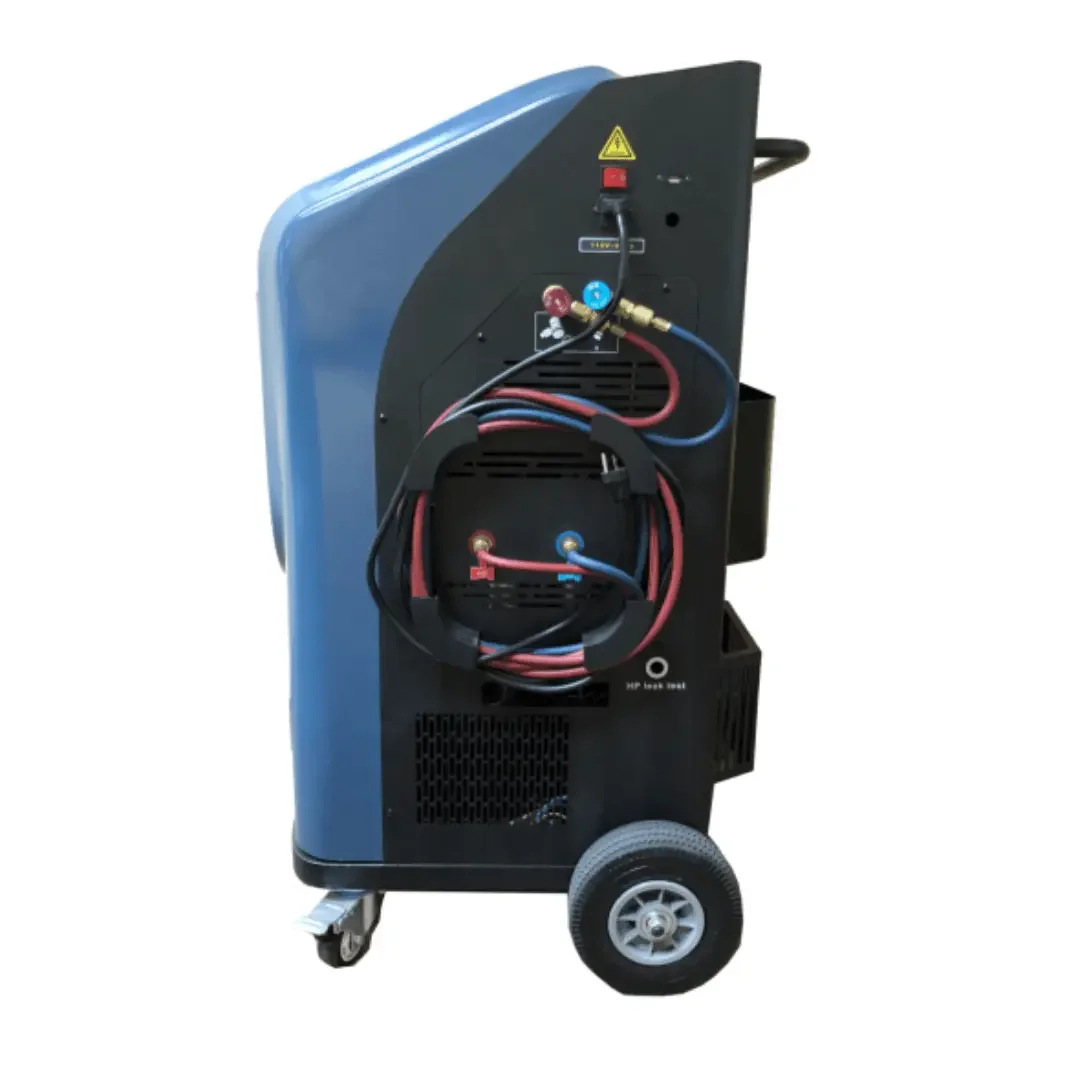

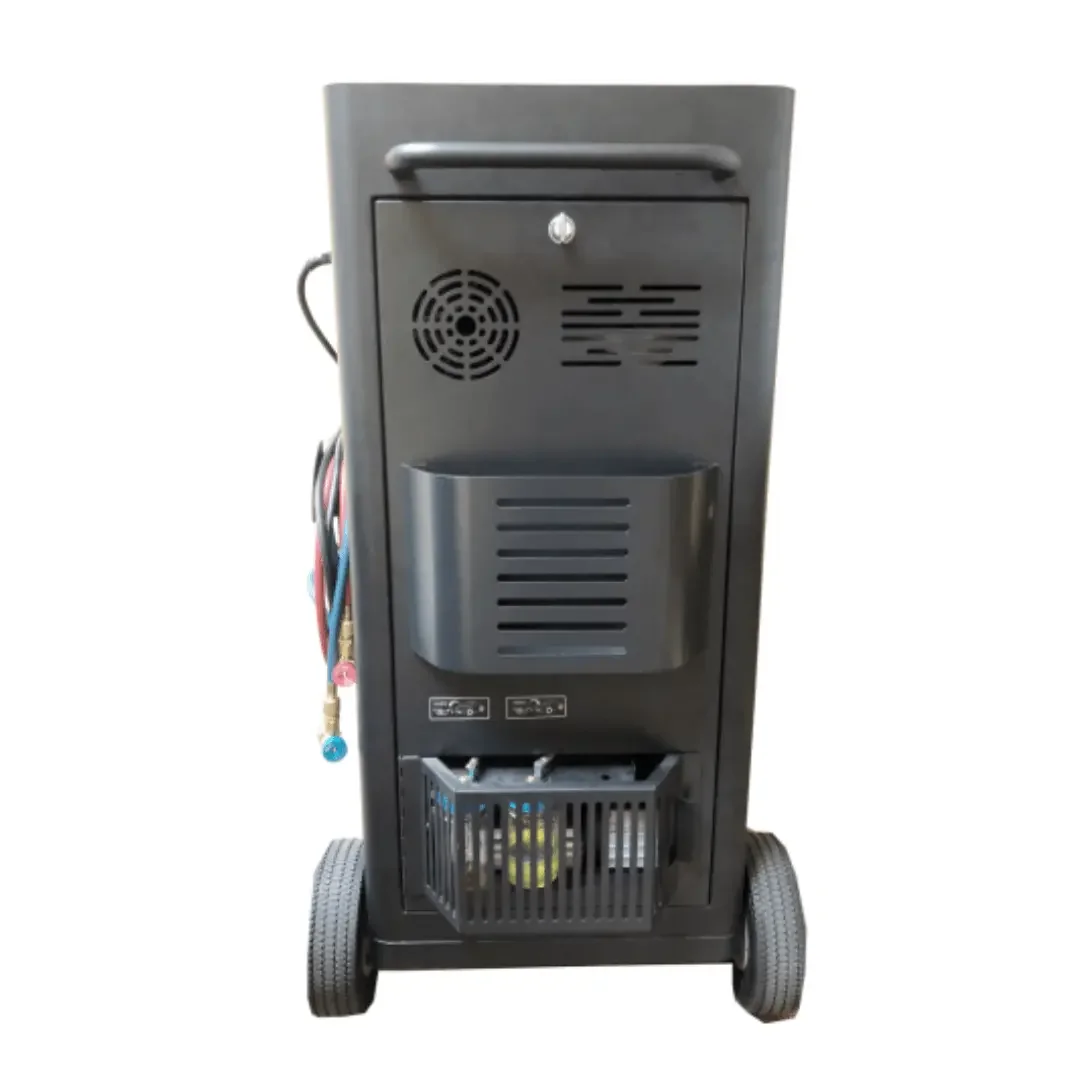

Bludee AC400 Auto Recovery Recycle Recharge Machine For R134A Refrigerant
The model AC400 is featuring 95% recovery efficiency for standard and hybrid vehicles and fully automatic function or manual mode.
The AC400 machine recover, recycle, evacuate, leak-test and recharge R-134a. It has automatic refrigerant refill and oil drain/inject – putting A/C lubricant back into the system. AC400 also built in thermal printer and capacity database is available for all passenger vehicles.
Product Features
- Automatic recovery/recycling/recharge, walk away and return when complete
- Automatic discharging used oil/oil drain.
- Automatic vacuum helps get to the necessary vacuum level in any condition quickly
- Automatic new oil injection shows how much oil was removed from the system during service
- Automatic internal tank refill. No stopping to fill the internal tank during service
- Automatic air purge removes the potential of air accumulating in the internal tank
- Comprehensive A/C capacity database
- Support Auto Mode: One step to do automatic recovery, recycling, vacuum and recharge
- Tank filling with manual or pre-set value options
- Onboard electronic scales
- Built in thermal printer
- Tank installed internally
- Vacuum leak test to identify gross leaks in a system
Product Functions
Main functions
- Recovering/Recycling
- Discharging used oil
- Vacuum
- Refilling new oil
- Recharging
- Full Automatic mode
- Vacuum leak test (optional)
Auxiliary functions
- Vacuum system piping
- Multiple alarms
- Maintenance procedures
- Part inspections
- Calibration of load cell
- Parameters setting
- Gas cylinder heating
- Incompressible gases discharging
Product Specifications
| Model | AC400 |
| Input power | AC110V 60Hz |
| Compressor | 3/8 HP |
| Vacuum pump capacity | 16Gal/min |
| Recovery rate | 99% to medium vacuum |
| Vapor state refrigerant recovery speed | 0.55 Lbs/Min |
| Gas cylinder volume | 22 lbs. |
| Drying filter | 20oz |
| Load cell accuracy(oil bottle) | +_5g |
| Load cell accuracy(gas cylinder) | +_10g |
| New and old oil bottle capacity | 8.9/13.5oz |
| Max working pressure | 290 PSI |
| Color screen | 4.3inch 480RGB x 272Dots |
| Dimension | 560 x 625 x 1048mm |
