Quincy 471CS80VCB 7.5 HP Pro Two Stage, 80 Gallon Vertical Air Compressor

QUINCY 471CS80VCB 7.5 HP PRO, 230 VOLT SINGLE PHASE, TWO STAGE, 80 GALLON VERTICAL AIR COMPRESSOR

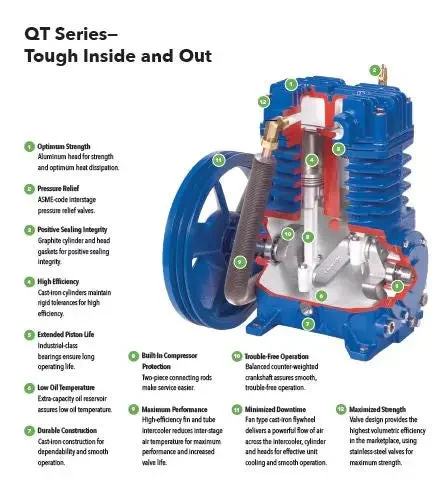

This two-stage splash lubricated air compressor delivers high output with lower horsepower requirements, proudly made in the USA. It features a durable cast iron QT-7.5 belt drive pump with an aluminum head designed for superior strength and heat dissipation. The stainless steel reed valves provide corrosion resistance and controlled lift for maximum efficiency.

Built with precision, the 2-cylinder cast-iron design maintains tight tolerances, supported by industrial-class bearings to extend piston life. Graphite gaskets ensure positive sealing and improved performance. The large balanced cast iron flywheel enhances smooth operation and cooling, improving energy efficiency and durability. A balanced crankshaft ensures trouble-free running.

Additional features include a high-efficiency finned tube intercooler to reduce heat and prolong valve life, plus 2-piece connecting rods to minimize downtime. The heavy-duty industrial motor includes a capacitor start and thermal overload protection, running cooler at lower RPMs to save energy. All electrical components have UL and CSA approvals.
